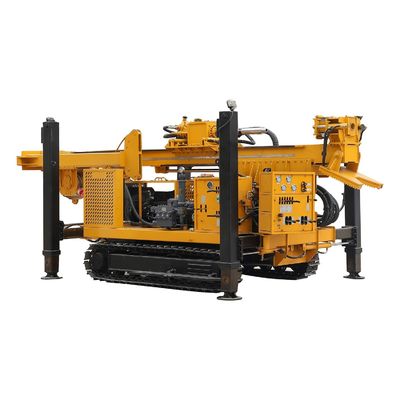

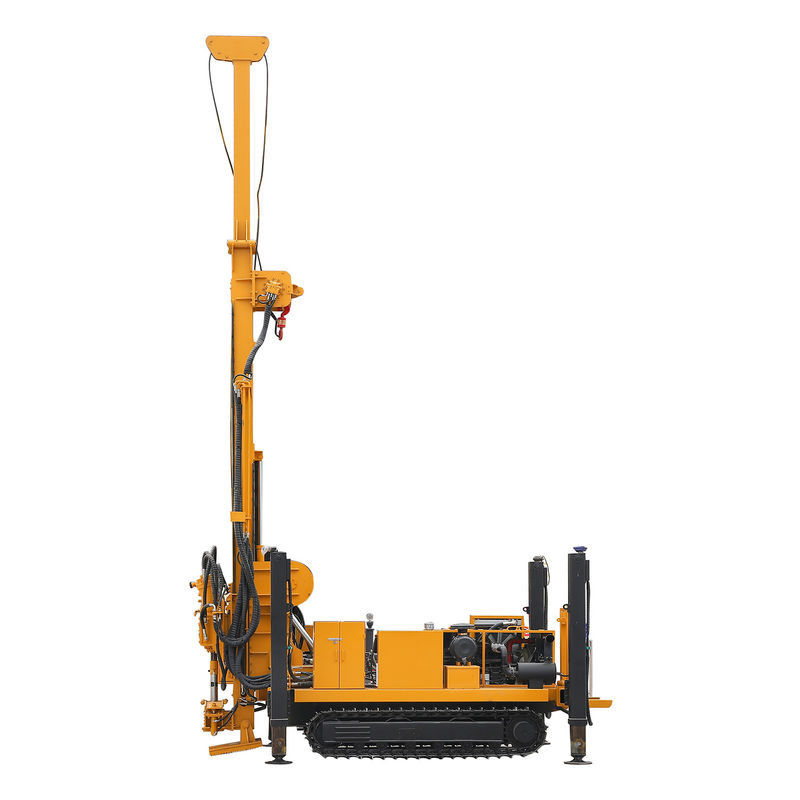

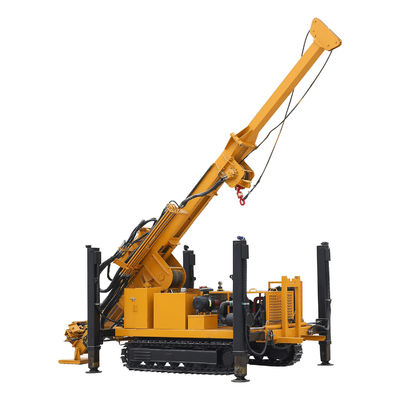

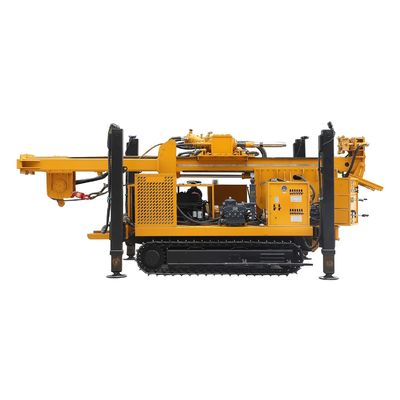

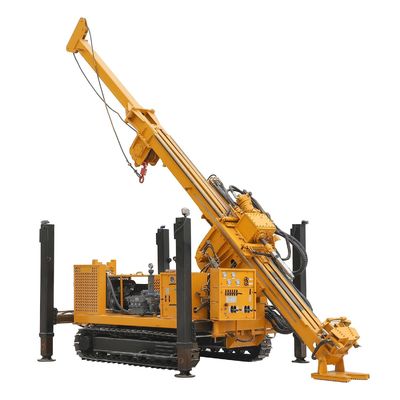

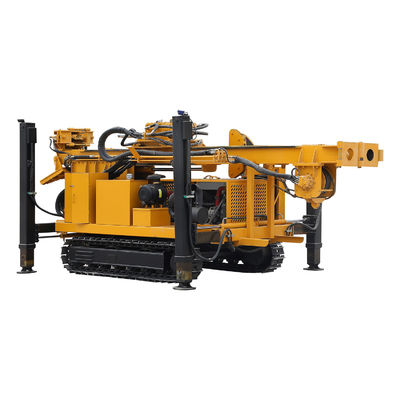

BEST-YX1000 Full Hydraulic Core Drill Rig
BEST-YX1000 full hydraulic core drilling rig is the third generation wireline coring rig .The
structure design of the whole machine is compact and reasonable, the hydraulic system is
more mature, and the performance is more superior. Compared with similar rigs in the
market, the advantages are very obvious. The drilling rig has good adaptability for
construction in high latitude and high altitude areas such as Xinjiang, Qinghai, inner
Mongolia and other high temperature and cold areas.
| Model | YX1000 | YX1500 |
| Engine | Cummins | Cummins |
| Control box | Double | Double |
| Crawler | KOMATSU | KOMATSU |
| Power head motor | 107Angle axial piston motor | 160Angle type axial piston motor |
| Lifting force | 20T+ | 25T+ |
| Drill head stroke | 3.6m | 3.6m |
| Maximum stroke | 6.6m | 6.6m |
| Turning torque | 1600Nm | 1800Nm |
| Rotation speed | 1300r/min | 1300r/min |
| Diameter | 76-122 | 76-122 |
| Rod length | 1.5/3m | 1.5/3/6m |
| Rod diameter | 76/89/96 | 76/89/96/122 |
| Leg | 1.5m | 1.5m |
| Power Motor | 15KW | 15KW |
| Mud pump | 160mud pump | 250-320mud pump |
| Uphill angle | 30° | 30° |
| Moving speed | 2.5/h | 2.5/h |
| Dimensions | 7200-4600*1900*2400 | 7200-4600*1900*2400 |
| Weight | 9.5T+ | 10T+ |
| Loading size | 2.93m | 2.93m |
| Working condition | loose layer and base | |
Situated in Wuxi City which is renowned as geological drilling equipment manufacturing cernter of China,Best Drilling has been specializing in geological equipment since 2008. and now it has become one of the leading manufacturers in this industry.
Best Drilling people sincerely look forward to working with you in the near future.
