Product Details:
Payment & Shipping Terms:
|
| Size: | PQ | Chinese Standard: | S59, S75, S95, P56, P59, P75, P91, PA-110, PA-130, P150 |
|---|---|---|---|
| Material: | Steel | Country Of Origin: | China |
| Product Name: | PQ Wireline Overshot | ||
| Highlight: | PQ Wireline Overshot,Wireline Overshot S59,PA-110 Wireline Fishing Tool |
||
overshot is an external catch fishing tool designed to catch the inner tube and core from the hole. Once core
sample is full inside the inner tube of a wireline core barrel, overshot is released from the top. Wireline Overshot Assembly slides inside the wireline drill rods. Lifting dogs of the overshot locks the spear head of the core barrel. Overshot along with inner tube is pulled out with steel wire rope. It is rugged, economical, and easy to use.

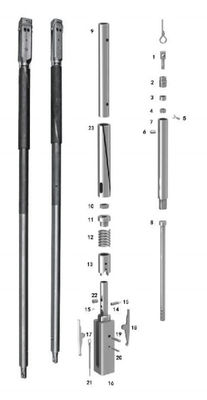

| Components | |
| Item | Description |
| 1 | Eye Bolt |
| 2 | Cable Swivel Collar |
| 3 | Thrust Bearing |
| 4 | Castle Nut |
| 5 | Cotter Pin |
| 6 | Grease Fitting |
| 7 | Cable Swivel Body |
| 8 | Jar Staff |
| 9 | Jar Tube |
| 10 | Hex Nut 3/4" UNC |
| 11 | Cap, Ezy Lock Overshot |
| 12 | Spring,Ezy Lock Overshot |
| 13 | Sleeve, Ezy Lock Overshot |
| 14 | Compression Spring |
| 15 | Ball 11/32" |
| 16 | Ezy Lock Overshot Head |
| 17 | Compression Spring |
| 18 | Lifting Dog |
| 19 | Plain Pin 1/2" x 1 15/16" |
| 20 | Spring Pin 1/4 x 1 3/4" |
| 21 | Locking Pin |
| 22 | Set Screw,3/8"UNF x 3/4" Nyloc |
| 23 | Locking Sleeve |
Best PQ Overshot is a high-quality overshot from China, designed to enable efficient drilling with steel. The product has a model number of PQ, and is compliant with Chinese standards S59, S75, S95, P56, P59, P75, P91, PA-110, PA-130, and P150. It is made from high-quality steel for long-term durability and strength. Best PQ Overshot has a size of PQ, which is ideal for many types of drilling.
This product can be used in a wide range of drilling scenarios, such as mining, construction, and infrastructure projects. It is suitable for all kinds of steel drilling, from shallow to deep drilling. Best PQ Overshot is also ideal for drilling in difficult conditions, as the steel construction provides extra strength and stability.
Best PQ Overshot is the perfect choice for anyone looking for a reliable and efficient overshot for drilling with steel. It is designed to provide a long-lasting performance in any drilling environment, and is perfect for any project that requires drilling with steel. With its high-quality construction and reliable performance, Best PQ Overshot is the best choice for drilling with steel.
Situated in Wuxi City which is renowned as geological drilling equipment manufacturing cernter of China,Best Drilling has been specializing in geological equipment since 2008. and now it has become one of the leading manufacturers in this industry.
Best Drilling people sincerely look forward to working with you in the near future.
