| Material: | Steel | Product Name: | Casing Shoe |
|---|---|---|---|
| MOQ: | 3Piece | Application: | Mining |
| Certificate: | ISO | Package: | Box , Wooden Case , Etc. |
| Highlight: | Steel Casing Shoe,Surface Set Casing Shoe,Drilling casing shoe |
||

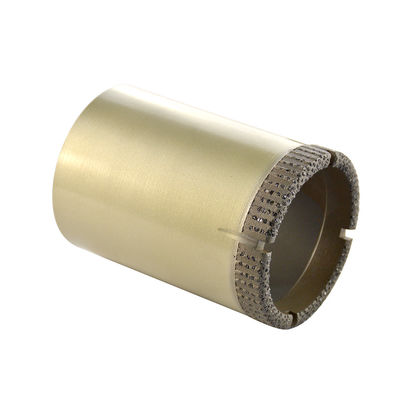

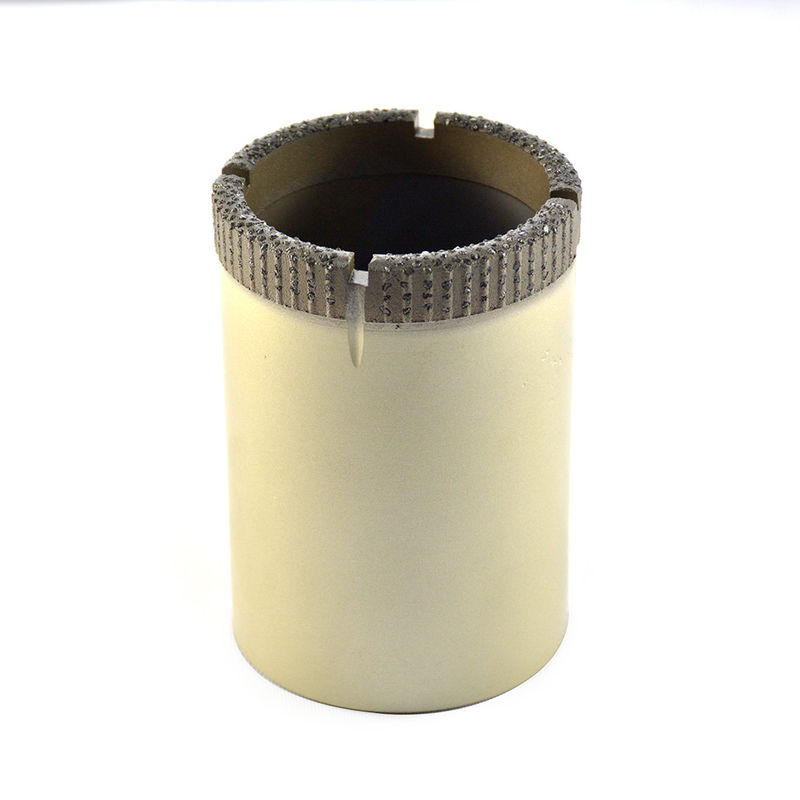

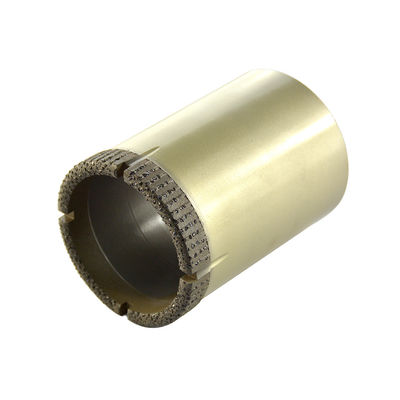

Casing Tube & Casing Shoe is an ideal product for mining applications. It is made of high-quality steel, which ensures its reliability and durability. Casing & Casing Shoe Bits are used for standard drilling down or positioning casing tubes into drill holes.
| TYPE | AW/B | BW/B | NW/B | HW/B | HWT/B | PW/B |
| O.D.(mm) | 59.5 | 75.2 | 91.8 | 117.4 | 117.4 | 143.4 |
| O.D.(inch) | 2.34 | 2.96 | 3.61 | 4.62 | 4.62 | 5.65 |
| I.D.(mm) | 48.3 | 60.2 | 76 | 99.7 | 99.7 | 123.4 |
| I.D.(inch) | 1.9 | 2.37 | 2.99 | 3.93 | 3.93 | 4.86 |
Casing Shoe are packaged and shipped in heavy-duty cardboard boxes or wooden case. The crates are sealed with a plastic film to protect the product from dirt, dust, moisture, and other damage during shipment. Each box or crate is clearly labeled with the item description, product weight, and quantity.
The shipment of Casing Shoe is usually done by sea or airfreight. We will provide the necessary documentation for customs clearance. The buyer is responsible for any customs and import duties incurred during the shipment.
