| Highlight: | Outer tube wrenches,Wireline tube wrenches,Retractable Pipe Wrenches |
||
|---|---|---|---|

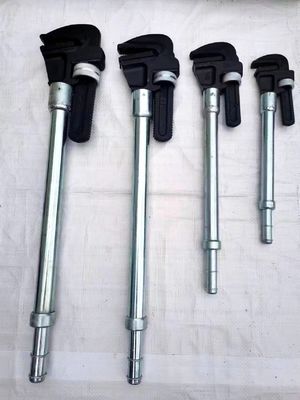

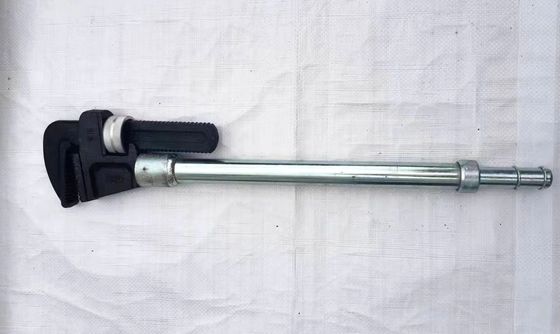

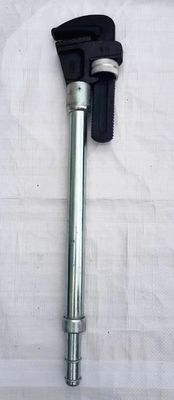

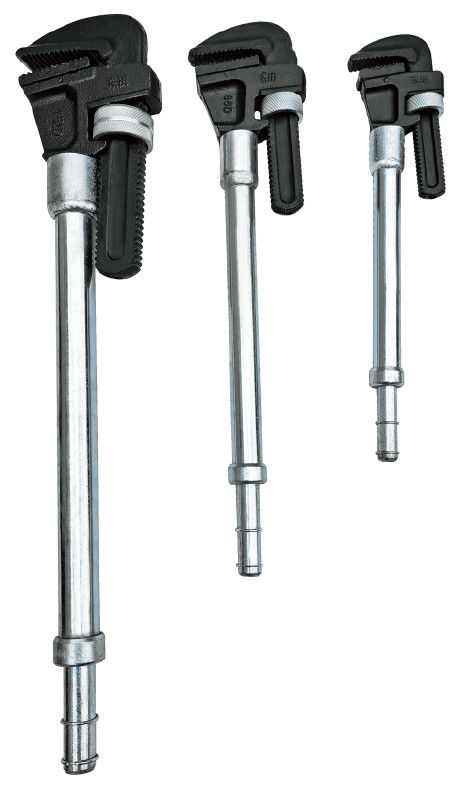

Wireline Inner/Outer Tube Wrenches diamond pipe wrench
Application: Wrench is used to tighten or loose the tubes during drilling.
| SIZE | TANTAMOUNT | OPEN BEFORE(MM) | OPEN LATER(MM) | NI.W.(KG) | MAX DIA(MM) | MAX TORQUE(N.M.) |
| 80S | 18" | 500 | 680 | 1.8 | 80 | 2479 |
| 95S | 24" | 580 | 840 | 3.2 | 95 | 3472 |
| 108S | SUPER HEAVY DUTY 24" | 720 | 980 | 3.9 | 108 | 5128 |
| 132S | 36" | 850 | 1270 | 5.5 | 132 | 6204 |
| 152S | SUPER HEAVY DUTY 36" | 920 | 1290 | 7 | 152 | 7032 |
| 195S | 48" | 1050 | 1410 | 8.4 | 195 | 7736 |
| 210S | SUPER HEAVY DUTY 48" | 1070 | 1500 | 10.5 | 210 | 8820 |
Situated in Wuxi City which is renowned as geological drilling equipment manufacturing cernter of China,Best Drilling has been specializing in geological equipment since 2008. and now it has become one of the leading manufacturers in this industry.
Best Drilling people sincerely look forward to working with you in the near future.
