| Product Name: | Impregnated Diamond Core Bit | Shape: | Cylindrical |
|---|---|---|---|
| Cutter Type: | Impregnated Diamond | Material: | Carbide, Diamond |
| Surface Finish: | Smooth | Thread Type: | API, Metric, Etc. |
| Connection: | Male/Female | Application: | Mining, Geological Exploration |
| MOQ: | 10 Piece | Payment Term: | T/T, L/C |
| Surface Treatment: | Polishing, Sandblasting | Warranty: | 1 Year |
| Highlight: | High Performance impregnated diamond core bit,Smooth Drilling impregnated diamond core bit,Q Series diamond impregnated drill bit |
||

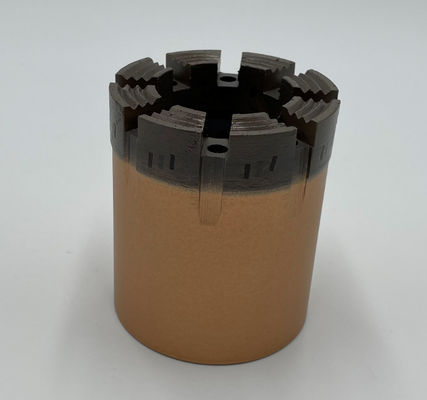

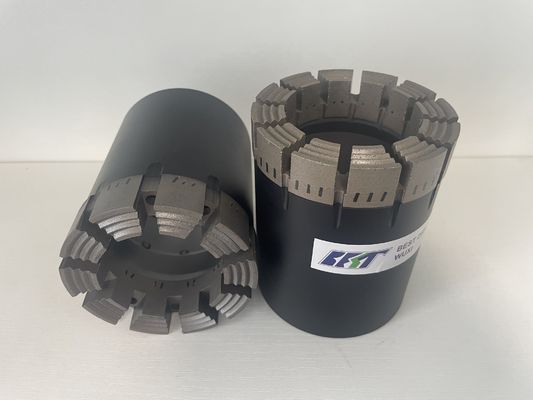

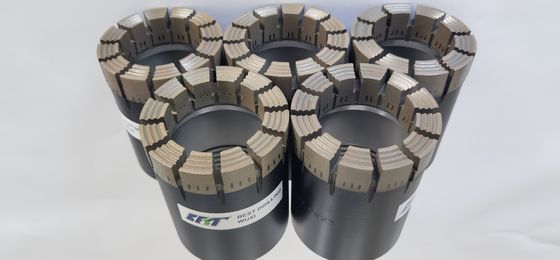

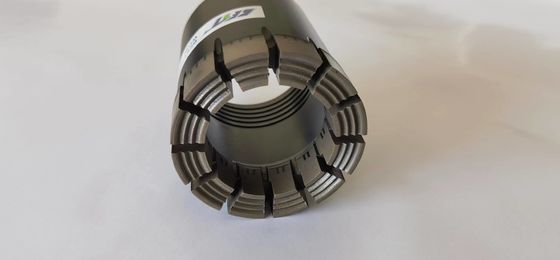

High-Performance Core Bit for Smooth Drilling Q Series
Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.
Precise core sampling High-quality drilling Impregnated Diamond Core Bit
| Rock Type | Rock Hardness |
Abrasiveness |
Hardness NO. |
Clay,Shale,Ash Stone,Gypsum,Tuff,Serpentinite,Calcite, Coal,Argillite,Volcanics,Sandly Pebble |
Soft |
Medium |
BST 1/3 |
Sandstone,Lithoid Limestone, Limonite |
Medium Soft |
Very High |
BST 3/5 |
Medium Hard Sandstone,Hard Shale, Hard Ash Stone,Dolomitic,Marble,Hard Schist, Hard Streak Stone,Siltstone,Andestite |
Medium |
High |
BST 5/7 |
| Peridotite,Gneiss,Limonite | Medium Hard |
Medium High |
BST 7/9 |
Pegmatite,Schist,Norite,Syenite,Gabbro,Peridotite, Grandiorite,Granite,Basalt,Hard Streak Stone |
Hard |
Medium To Low |
BST 9/11 |
| Amphibolite,Diorite,Rhyolite,Quartzite | Very Hard | Medium To Low | BST 11 |
Silicious,Hard Sandstone,Rhyolite, Dense Quartzite,Ironstone,Taconite,Jasperite,Chert |
Utral Hard |
Low |
BST 14 |
