Diamond Core Drilling Casing Tube Pipe Drilling Rod Fast Cutting

Large Image : Diamond Core Drilling Casing Tube Pipe Drilling Rod Fast Cutting

Product Details:

Place of Origin:	China
Brand Name:	Best
Certification:	GB/T19001-2016/ISO9001:2015
Model Number:	Bw Nw Hw Pw

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Price:	US$66.00-116.00
Packaging Details:	Wooden case or as request.
Delivery Time:	3-10 WORKING DAYS
Payment Terms:	T/T, L/C at sight
Supply Ability:	100000PCS/Year

Contact Now

Detailed Product Description

Model NO.:	Bw Nw Hw Pw	Trade Mark:	Best Drilling
Transport Package:	Plywood Case Or As Request	Length:	1.5M, 3M
Market:	Goloble	HS Code:	73045120
Highlight:	diamond core drilling casing tube , fast cutting casing tube , fast cutting casing pipe

Diamond Core Drilling Casing Pipe Drilling Rod Drill Tube

Casing pipe is used for protecting subsurface formations. It also protects the bore hole form collapsing.

As an important part of the bore hole, casing has several important functions:

Casing tube function: Prevent bore hole collapse, the isolation of different formations to prevent liquid convection between the formations and thus play a role in controlling the drilling fluid and pressre while drilling.

-Assist ground control equipment and downhloe production equipment to achieve their respective functions.

Best's wireline drill rods are manufactured from highest quality cold drawn alloy seamless steel pipes, which contain
superior yield and ultimate strength. Harding the thread and special heat process on pin thread and tube surface.

Flush-Joint W Series Casing

	OD		ID
Size	Inch	mm	Inch	mm
BW	2.874	73	2.374	60.3
NW	3.5	88.9	3	76.2
HW	4.5	114.3	4	101.6
PW	5.5	139.7	5	127
SW	6.5	168	6	152.4

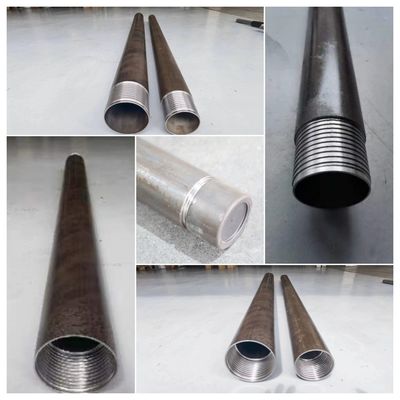

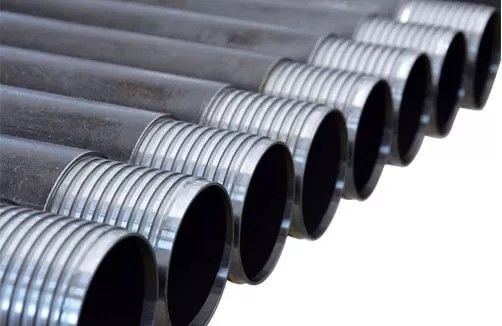

Detailed photos:

Diamond Core Drilling Casing Tube Pipe Drilling Rod Fast Cutting 0

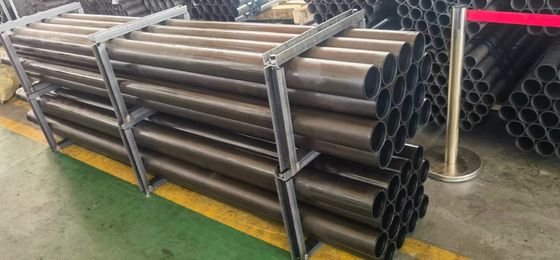

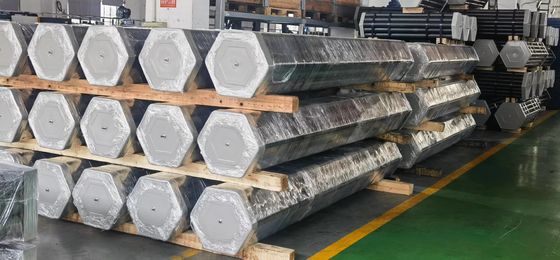

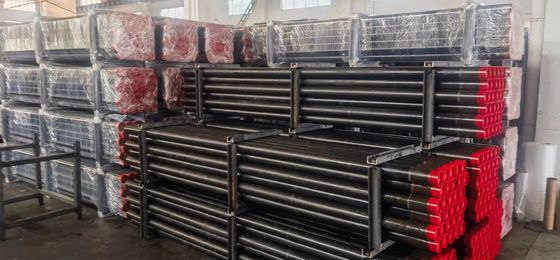

Packing:

Diamond Core Drilling Casing Tube Pipe Drilling Rod Fast Cutting 2

Company Profile:
Situated in Wuxi city which is renowned as geological driling equipment manufacturing center of China, Best Drilling has been specializing in geological drilling equipment since 2008.And now it has become one of the leading manufacturers in this industry.
Since the day of establishment, Best Drilling people never ceases their effort in pursuing quality products and qualified personnel.Not only have we adopted advanced modern manufacturing equipment but also we set up R&D center and brought in large number of professionals. Eg, our chief engineer a famous specialist in this filed with more than a experience of 30 years.
Best Drilling people sincerely look forward to working with you in the near future.
