Geological Exploration Drill Rod for Wireline Drilling
Drill rods are essential tools for core drilling operations. High-quality drill rods play a critical role in efficiently obtaining core samples during geological exploration.
Premium Quality Manufacturing
Best Drilling Equipment (WUXI) Co., Ltd. provides high-quality wireline drill rods designed to meet the requirements of various working conditions. Our drill rods are manufactured using premium heat-treated seamless steel tubes and strictly adhere to corresponding industry standards.
Available Standard Sizes
| Standard | Length (m) |
|---|
| BQ | 1.5 |
| BQ | 3.0 |
| NQ | 1.5 |
| NQ | 3.0 |
| HQ | 1.5 |
| HQ | 3.0 |
| PQ | 1.5 |
| PQ | 3.0 |
Main Products and Supply Scope
- Drill rod
- Impregnated diamond core bits
- Surface set diamond bits
- Casing rod, casing shoes and casing bits
- Reaming shells
- Coring PDC bits
- Non-coring PDC bits
- Core barrel assembly and overshot
- Drilling accessories including: inner tube, outer tube, locking coupling, adaptor coupling, inner tube stabilizer ring, landing ring, stop ring, etc.
- Other customized exploration core drilling tools & parts
Key Product Features
- Premium Materials: Manufactured from high-strength steel alloys and robust materials for superior durability and wear resistance
- Exceptional Performance: Engineered to withstand high pressures and heavy loads for reliable operation
- Precision Engineering: Strict tolerances ensure perfect fit with other drilling components
- Versatile Applications: Suitable for mining, geotechnical investigations, oil and gas drilling, and construction projects
- Custom Solutions: Tailored specifications available for specific project requirements

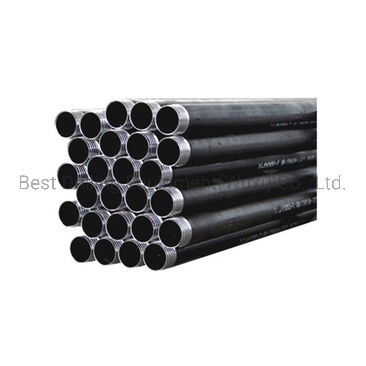

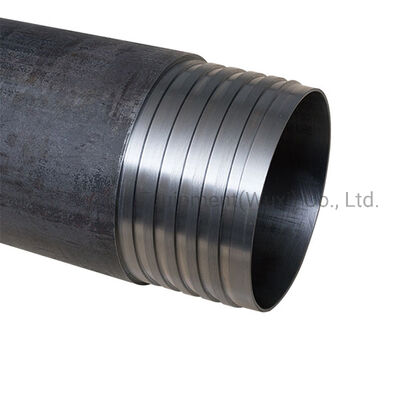

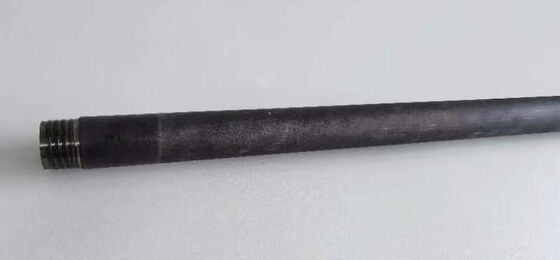

Product Images
Drill Rod Technical Parameters
| Size | Length(mm) | O.D(mm) | O.D(inch) | I.D(mm) | I.D(inch) |
|---|
| BQ/B | 1500 | 3000 | 55.6 | 2.19 | 46 | 1.81 |
| NQ/B | 1500 | 3000 | 70.1 | 2.76 | 60.1 | 2.37 |
| HQ/B | 1500 | 3000 | 89 | 3.5 | 77.8 | 3.06 |
| PQ/B | 1500 | 3000 | 114.3 | 4.5 | 101.6 | 4 |
| BTW/B | 1000 | 1500 | 57 | 2.24 | 48.5 | 1.91 |
| NTW/B | 1000 | 1500 | 73.3 | 2.88 | 64.3 | 2.53 |
| HTW/B | 1000 | 1500 | 91.3 | 3.59 | 81.7 | 3.21 |
Outer Tube and Inner Tube Parameters
| Size | O.D(mm) | O.D(inch) | I.D(mm) | I.D(inch) |
|---|
| Outer Tube |
| BQ/B | 57.2 | 2.25 | 46 | 1.81 |
| NQ/B | 73 | 2.87 | 60.3 | 2.37 |
| HQ/B | 92.1 | 3.63 | 77.8 | 3.06 |
| PQ/B | 117.5 | 4.63 | 103.2 | 4.06 |
| Inner Tube |
| BQ/B | 42.9 | 1.69 | 38.1 | 1.50 |
| NQ/B | 55.6 | 2.19 | 50 | 1.97 |
| HQ/B | 73 | 2.87 | 66.7 | 2.63 |
| PQ/B | 95.3 | 3.75 | 88.9 | 3.50 |
Company Overview

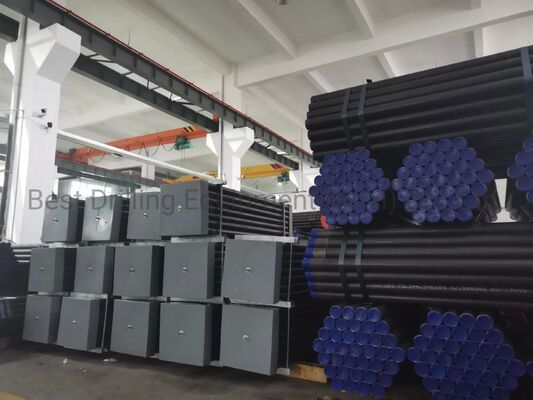

Packaging and Shipping
Frequently Asked Questions
Q1. Where is your factory located?
Our factory is located in Wuxi, Jiangsu, China, approximately 2 hours driving distance from Shanghai.
Q2. How do you control quality?
We are ISO9001 certified and provide Mill Test Certificates. Third-party inspection is available according to customer requirements.
Q3. What are the advantages of your company?
We employ many professionals and technical personnel, offer competitive pricing, and provide superior after-sales service compared to other companies.
Q4. Can you arrange shipment?
Yes, we work with established forwarders who have cooperated with us for years to handle all shipping arrangements.
Q5. How about the delivery time?
Delivery time depends on order volume. Typically, we ship within 3 days after receiving advance payment for items in stock.
Q6. Can you provide samples?
Small samples from our inventory can be provided free of charge for evaluation purposes.
