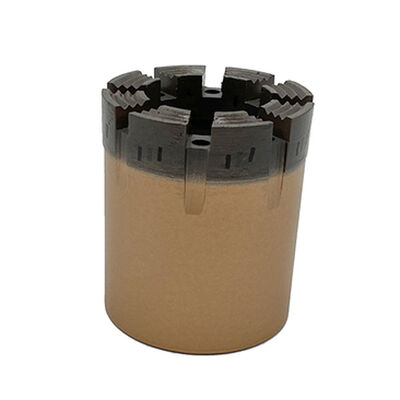

Manufacturer Diamond Core Drill Bit for Q Series with Bq Hq Nq Pq Hq3 Pq3 Nq3

Large Image : Manufacturer Diamond Core Drill Bit for Q Series with Bq Hq Nq Pq Hq3 Pq3 Nq3

Product Details:

Certification:	ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	50

Contact Now

Manufacturer Diamond Core Drill Bit for Q Series with Bq Hq Nq Pq Hq3 Pq3 Nq3

Description

Model:	Bq Bq3 Nq Nq2 Nq3 Hq Hq3 Pq Pq3	Material:	Diamond
Use:	Geotechnical/Mining Exploration	Manufacturing Arts:	Sinter
Types:	Diamond Core Bit	Function:	Rock Core Drilling
Machine Type:	Drilling Equipment	Hardness:	F1-F12
Industry:	Geological Survey	Surface:	Finish Smooth
Product Name:	Impregnated Diamond Bit	Rock Type:	Clay,Hard Sandstone,Syenite,Quartzite,etc
Crown Height:	12mm	Bit Diameter:	Aq Bq Nq Hq Pq Nq3 Hq3 Pq3
Surface Type:	Natural Surface And Impregnated	Transport Package:	Carton/Wooden Case
Specification:	BQ, NQ, HQ, PQ	Trademark:	BEST
Origin:	Wuxi China	HS Code:	82071910
Production Capacity:	50000PCS/Year
Highlight:	Diamond core drill bit for Q series , Impregnated diamond core bit with warranty , BQ HQ NQ PQ core drill bit

Wireline Diamond Core Drill Bit for Geological Exploration

Manufacturer Diamond Core Drill Bit for Q Series with Bq Hq Nq Pq Hq3 Pq3 Nq3 0

Exploration is a very important way to identify if the rock contains any interesting minerals, also it can be used for construction industries,diamond core drilling is one of the common method to do such drilling and get the core samples from rock and soil, the samples will be sent for analysis. In the process of drilling, high performance bit is a key factor for scientific and professional drilling.
Product Features
High-Quality Materials: Our diamond drill bits are made from high-grade industrial diamonds, ensuring outstanding performance under various rock and geological conditions
Superior Cutting Performance: With advanced manufacturing techniques and scientific design, our drill bits possess excellent cutting abilities, efficiently penetrating hard rock layers and improving work efficiency.
Strong Durability: Our drill bits undergo rigorous quality control, featuring excellent wear resistance and impact resistance, which leads to a longer lifespan and reduced replacement and maintenance costs.
Diverse Options: We offer a variety of specifications and models of diamond drill bits to meet the needs of different geological exploration projects. Whether dealing with soft soil layers or hard rock formations, we provide the right drill bit for your project.

Type	AQ/B	BQ/B	NQ/B	NQ3/B	HQ/B	HQ3/B	PQ/B
O.D(mm)	47.7	59.6	75.4	75.4	95.7	95.7	122.3
O.D(inch)	1.88	2.35	2.97	2.97	3.77	3.77	4.81
I.D(mm)	27.1	36.5	47.7	45.2	63.6	61.2	85.1
I.D(inch)	1.07	1.44	1.88	1.78	2.50	2.41	3.35

Type	PQ3/B	NWM/B	NWG/B	NMLC/B	HMLC/B	NQTT/B	HQTT/B
O.D(mm)	122.3	59.6	75.4	75.4	98.9	75.4	95.7
O.D(inch)	4.81	2.35	2.97	2.97	3.89	2.97	3.77
I.D(mm)	83	36.5	54.8	52.1	63.6	45	61.1
I.D(inch)	3.26	1.44	2.16	2.05	2.5	1.77	2.4

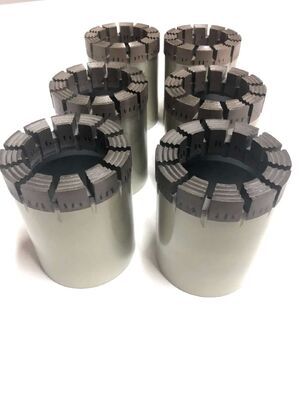

Manufacturer Diamond Core Drill Bit for Q Series with Bq Hq Nq Pq Hq3 Pq3 Nq3 1

Carbon bit choice chart

Rock Type	Rock Hardness	Abrasiveness	Hardness NO.
Clay,Shale,Ash Stone,Gypsum,Tuff,Serpentinite,Calcite, Coal,Argillite,Volcanics,Sandly Pebble	Soft	Medium	BST 1/3
Sandstone,Lithoid Limestone, Limonite	Medium Soft	Very High	BST 3/5
Sandstone,Lithoid Limestone, Limonite	Medium Soft	Very High	BST 3/5
Medium Hard Sandstone,Hard Shale, Hard Ash Stone,Dolomitic,Marble,Hard Schist, Hard Streak Stone,Siltstone,Andestite	Medium	High	BST 5/7
Peridotite,Gneiss,Limonite	Medium Hard	Medium High	BST 7/9
Pegmatite,Schist,Norite,Syenite,Gabbro,Peridotite, Grandiorite,Granite,Basalt,Hard Streak Stone	Hard	Medium To Low	BST 9/11
Amphibolite,Diorite,Rhyolite,Quartzite	Very Hard	Medium To Low	BST 11
Silicious,Hard Sandstone,Rhyolite, Dense Quartzite,Ironstone,Taconite,Jasperite,Chert	Utral Hard	Low	BST 14

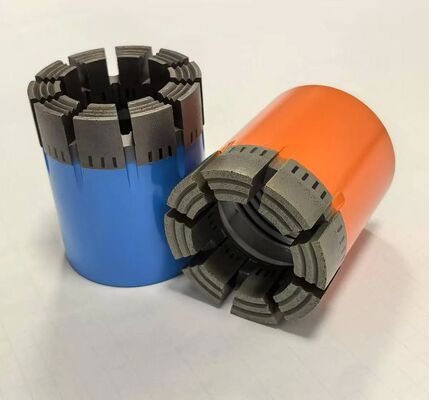

Manufacturer Diamond Core Drill Bit for Q Series with Bq Hq Nq Pq Hq3 Pq3 Nq3 7

Workshop

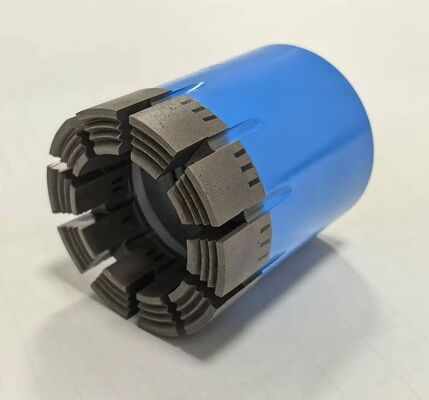

Manufacturer Diamond Core Drill Bit for Q Series with Bq Hq Nq Pq Hq3 Pq3 Nq3 8

Diamond Core Bit
Casing Shoe
Diamond Reaming Shell
Drill Rod
Wireline core barrel assembly
Overshot assembly
Water Swivel
Hoisting Plug
Subs
Adapter coupling/locking coupling
Core lifter/core lifter case/stop ring
Wrench
Inner tube stabilizer
Landing ring
Core Barrels kit
Loading chamber

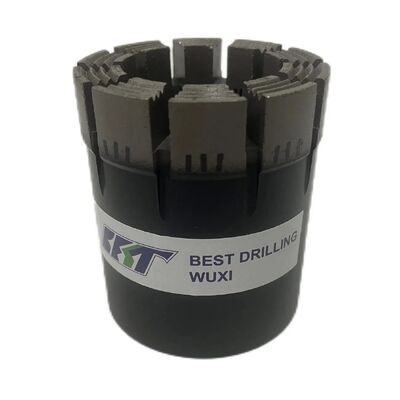

Manufacturer Diamond Core Drill Bit for Q Series with Bq Hq Nq Pq Hq3 Pq3 Nq3 9

Field Work

Q1. Where is your factory?
A1: Our factory is located in Wuxi, Jiangsu, China, it takes only about 2 hours driving from Shanghai.

Q2. How do you control quality?
A2: ISO9001 has been passed. Mill Test Certificate is supplied , meanwhile the Third Party Inspection is available according to customers' requirement.

Q3. What are the advantages of your company?
A3: We have many professionals, technical personnel, more competitive prices and best after-sales service than other companies.

Q4. Can you arrange the shipment?
A4: Yes, of course, we have our forwarders which has cooperated with us for years.

Q5. How about the delivery time?
A5: It will be decided by the orders. Normally within 3 days after receiving your advance payment if we have stock.

Q6. Can you provide sample?
A6: Small samples in store can be provided for free.
